Welcome to this comprehensive guide on Deep Q-Learning applied to the CartPole problem! This tutorial is designed for beginners who want to dive into reinforcement learning (RL) and understand how Deep Q-Learning combines RL with neural networks to solve complex tasks. We’ll walk through the theory, break down the math, and provide a step-by-step implementation in Python using Keras and OpenAI Gym’s CartPole environment. By the end, you’ll have a solid grasp of Deep Q-Learning and a working model to balance a pole on a cart. Let’s embark on this exciting journey!
Reinforcement Learning (RL) is a fascinating area of machine learning where an agent learns to make decisions by interacting with an environment. Unlike supervised learning, where a model trains on labeled data, or unsupervised learning, where patterns are found in unlabeled data, RL is about learning through trial and error. The agent takes actions, receives feedback in the form of rewards, and adjusts its strategy to maximize cumulative rewards over time. Imagine teaching a child to ride a bike: they try, fall, learn, and eventually balance perfectly.
The path to Deep Q-Learning starts with understanding Q-Learning, a foundational RL algorithm. Q-Learning helps an agent learn the value of actions in different situations (states) to make optimal decisions. However, for complex problems with large or continuous state spaces, like the CartPole environment, Q-Learning alone isn’t enough. This is where Deep Q-Learning comes in, using neural networks to scale Q-Learning to real-world challenges. In this tutorial, we’ll build on these concepts to teach an agent to balance a pole on a moving cart, a classic RL problem.
RL Agent-Environment
The core of RL is the interaction between the agent and the environment, which forms a continuous feedback loop:
Agent: The decision-maker, like a program controlling the cart in CartPole.
Environment: The world the agent operates in, such as the CartPole simulation where a pole is balanced on a moving cart.
Here’s how the loop works:
The agent observes the state of the environment. In CartPole, the state includes four variables: cart position, cart velocity, pole angle, and pole angular velocity.
Based on the state, the agent chooses an action (e.g., move the cart left or right).
The environment responds with a reward (e.g., +1 for each time step the pole stays upright) and a new state.
The agent uses this feedback to improve its decision-making.
In the CartPole environment (specifically CartPole-v1 from OpenAI Gym), the goal is to keep the pole balanced as long as possible. The episode ends if the pole tilts beyond a certain angle (±12°) or the cart moves too far (±2.4 units). The agent’s objective is to learn a policy—a strategy for choosing actions—that maximizes the total reward, effectively keeping the pole balanced for hundreds of time steps.
Markov Decision Process (MDP)
To model the agent-environment interaction mathematically, RL uses a Markov Decision Process (MDP). An MDP provides a structured framework with five key components:
States (S): All possible situations the agent can encounter. In CartPole, a state is a vector of four values: [cart position, cart velocity, pole angle, pole angular velocity].
Actions (A): The set of possible actions. In CartPole, there are two actions: move left (0) or move right (1).
Transition Probability (P): The probability of moving from one state to another after taking an action. In CartPole, the environment’s physics determines this (e.g., moving left changes the cart’s velocity).
Rewards (R): Feedback from the environment. In CartPole, the agent gets +1 for each time step the pole remains balanced.
Discount Factor (γ): A value between 0 and 1 that balances immediate and future rewards. A γ of 0.95, for example, means future rewards are slightly less valuable than immediate ones.
The Markov property is crucial: the next state and reward depend only on the current state and action, not the entire history. This simplifies decision-making, as the agent only needs to consider the current state. In Deep Q-Learning, the MDP framework helps the agent learn an optimal policy by estimating the value of actions in each state.
Q-Learning
Q-Learning is a value-based RL algorithm that enables an agent to learn the Q-value for each state-action pair. The Q-value, denoted ( Q(s, a) ), represents the expected cumulative reward for taking action ( a ) in state ( s ) and following the optimal policy thereafter. Q-Learning is model-free, meaning it doesn’t need to know the environment’s transition probabilities—it learns directly from experience.
The Q-value is updated using the Bellman equation:
[ Q(s, a) \leftarrow Q(s, a) + \alpha \left[ r + \gamma \max_{a’} Q(s’, a’) – Q(s, a) \right] ]
Where:
( s ): Current state
( a ): Action taken
( r ): Reward received
( s’ ): Next state
( a’ ): Possible actions in the next state
( \alpha ): Learning rate (e.g., 0.1), controlling how much the Q-value updates
( \gamma ): Discount factor (e.g., 0.95)
( \max_{a’} Q(s’, a’) ): The highest Q-value for the next state
In traditional Q-Learning, Q-values are stored in a Q-table, a lookup table mapping state-action pairs to values. The agent:
Starts with an empty or random Q-table.
Explores the environment using an epsilon-greedy policy (choosing random actions with probability ( \epsilon ), otherwise picking the action with the highest Q-value).
Updates the Q-table based on rewards and the Bellman equation.
Over time, converges to an optimal policy.
However, for CartPole, the state space is continuous (four floating-point variables), making a Q-table impractical—it would be too large or infinite. This limitation leads us to Deep Q-Learning, which uses a neural network to approximate Q-values.
What is Deep Q-Learning?
Deep Q-Learning is an advanced version of Q-Learning that replaces the Q-table with a neural network, called a Deep Q-Network (DQN). The DQN takes a state as input and outputs Q-values for all possible actions. For CartPole, the input is a vector of four values, and the output is two Q-values (one for moving left, one for right).
Deep Q-Learning combines the power of neural networks—excellent at function approximation—with the decision-making framework of Q-Learning. The neural network learns to generalize across similar states, making it suitable for complex environments like CartPole, where states are continuous and numerous.
The agent still follows an epsilon-greedy policy:
With probability ( \epsilon ), it explores by choosing a random action.
Otherwise, it exploits by selecting the action with the highest Q-value predicted by the DQN.
As training progresses, ( \epsilon ) decreases (e.g., from 1.0 to 0.01), shifting the agent from exploration to exploitation. Deep Q-Learning is a cornerstone of modern RL, famously used by DeepMind to master Atari games.
Why ‘Deep’ Q-Learning?
Why introduce neural networks into Q-Learning? Here are the key reasons Deep Q-Learning is necessary:
Scalability: In traditional Q-Learning, a Q-table requires an entry for every state-action pair. For environments with large or continuous state spaces (like CartPole’s four continuous variables), this becomes infeasible. A neural network can generalize across states, reducing memory and computation needs.
Generalization: Neural networks learn patterns in the data, allowing the agent to predict Q-values for unseen states based on similar ones.
Complex Environments: Deep Q-Learning can handle high-dimensional inputs, like images in Atari games, or continuous states, like those in CartPole.
Real-World Applications: From robotics to autonomous vehicles, Deep Q-Learning powers systems where traditional Q-Learning falls short.
In CartPole, Deep Q-Learning allows the agent to learn a robust policy without storing billions of state-action pairs, making it practical and efficient.
Deep Q-Networks

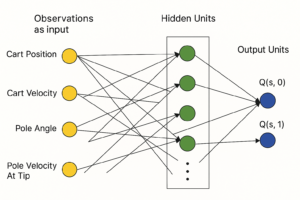

A Deep Q-Network (DQN) is a neural network designed to approximate Q-values. Its structure is straightforward but powerful:
Input Layer: Takes the state vector (e.g., CartPole’s four variables).
Hidden Layers: Typically fully connected layers with ReLU activation to learn complex patterns. For CartPole, two layers with 24 neurons each work well.
Output Layer: Outputs Q-values for each action (e.g., two outputs for left and right in CartPole).
The DQN is trained using gradient descent to minimize the mean squared error between:
Predicted Q-value: The DQN’s output for the current state and action.
Target Q-value: Calculated using the Bellman equation: ( r + \gamma \max_{a’} Q(s’, a’) ).
This process mimics supervised learning but adapts to RL’s dynamic nature, where targets evolve as the agent learns. Deep Q-Learning relies on the DQN’s ability to approximate Q-values accurately across diverse states.
Challenges in Deep RL as Compared to Deep Learning
Combining neural networks with RL introduces unique challenges not found in traditional deep learning:
Non-stationary Targets: In supervised learning, targets (e.g., class labels) are fixed. In Deep Q-Learning, the target Q-values depend on the DQN’s own predictions, which change during training, causing instability.
Correlated Experiences: RL generates sequential data (e.g., consecutive states in CartPole), which is highly correlated. Neural networks struggle with correlated inputs, leading to overfitting or forgetting.
Exploration vs. Exploitation Trade-off: The agent must balance exploring new actions (to discover better strategies) and exploiting known actions (to maximize rewards). Poor balance can lead to suboptimal policies.
Reward Sparsity: In some environments, rewards are rare or delayed, making it hard for the agent to learn meaningful patterns.
Deep Q-Learning addresses these challenges with two critical techniques: Target Network and Experience Replay.
1. Target Network
The Target Network is a second DQN with frozen weights, used to compute stable target Q-values. It’s a copy of the main DQN but updated less frequently (e.g., every 10 episodes or 1,000 steps). This stabilizes training by:
Providing consistent target Q-values, reducing the “moving target” problem.
Preventing feedback loops where the DQN’s predictions chase their own updates.
For example, in Deep Q-Learning for CartPole:
The main DQN predicts ( Q(s, a) ) for the current state and action.
The Target Network predicts ( Q(s’, a’) ) for the next state to compute the target: ( r + \gamma \max_{a’} Q_{\text{target}}(s’, a’) ).
The main DQN is trained to minimize the difference between its prediction and this target.
By updating the Target Network periodically, Deep Q-Learning ensures stable and gradual learning.
2. Experience Replay
Experience Replay stores the agent’s experiences—(state, action, reward, next state, done)—in a replay buffer, typically implemented as a deque (double-ended queue). Instead of training on experiences as they happen, the agent:
Stores each experience in the buffer.
Randomly samples a mini-batch (e.g., 32 experiences) for training.
Uses these samples to update the DQN.
Benefits of Experience Replay in Deep Q-Learning:
Breaks Correlation: Random sampling disrupts the sequential nature of experiences, improving neural network training.
Data Efficiency: Experiences are reused multiple times, making learning more sample-efficient.
Stability: Reduces the risk of overfitting to recent experiences.
In CartPole, Experience Replay helps the agent learn from both successful (long episodes) and failed (short episodes) experiences, leading to a robust policy.
Putting it all Together
Let’s summarize the Deep Q-Learning algorithm for CartPole:
Initialize: Create the main DQN and Target Network with identical weights. Set up an empty replay buffer and hyperparameters (e.g., ( \gamma = 0.95 ), ( \epsilon = 1.0 )).
Interact with Environment: For each episode:
Reset the CartPole environment to get the initial state.
For each time step:
Choose an action using the epsilon-greedy policy.
Execute the action, observe the reward, next state, and whether the episode ended (done).
Store the experience in the replay buffer.
Train the DQN: Sample a mini-batch from the replay buffer, compute target Q-values using the Target Network, and update the main DQN via gradient descent.
Update Policies: Decrease ( \epsilon ) to reduce exploration over time. Periodically copy the main DQN’s weights to the Target Network.
Repeat: Continue for many episodes until the agent consistently balances the pole (e.g., achieves scores near 500 in CartPole-v1).
This process integrates exploration, learning, and stabilization, making Deep Q-Learning effective for CartPole.
Implementing Deep Q-Learning in Python using Keras & OpenAI Gym
Now, let’s implement Deep Q-Learning for CartPole using Keras (for the neural network) and OpenAI Gym (for the environment). This code is beginner-friendly, with detailed comments to guide you.
Step 1: Install Dependencies
Run the following in your terminal to install required libraries:
pip install gym keras tensorflow numpy
Step 2: Set Up the CartPole Environment
import gym
import numpy as np
# Create the CartPole environment
env = gym.make('CartPole-v1')
state_size = env.observation_space.shape[0] # 4 (cart position, velocity, pole angle, angular velocity)
action_size = env.action_space.n # 2 (left, right)
Step 3: Build the Deep Q-Network
We’ll create a simple DQN with two hidden layers, suitable for CartPole:
from keras.models import Sequential
from keras.layers import Dense
def build_model():
model = Sequential()
model.add(Dense(24, input_dim=state_size, activation='relu')) # First hidden layer
model.add(Dense(24, activation='relu')) # Second hidden layer
model.add(Dense(action_size, activation='linear')) # Output Q-values for actions
model.compile(loss='mse', optimizer='adam') # Mean squared error loss
return model
# Initialize main and target DQNs
model = build_model()
target_model = build_model()
target_model.set_weights(model.get_weights()) # Copy weights to target
Step 4: Experience Replay
Use a deque to store experiences and implement replay:
from collections import deque
import random
# Hyperparameters
replay_buffer = deque(maxlen=2000) # Buffer size
batch_size = 32
gamma = 0.95 # Discount factor
def remember(state, action, reward, next_state, done):
"""Store experience in replay buffer"""
replay_buffer.append((state, action, reward, next_state, done))
def replay():
"""Train DQN using random mini-batch"""
if len(replay_buffer) < batch_size:
return
minibatch = random.sample(replay_buffer, batch_size)
for state, action, reward, next_state, done in minibatch:
# Calculate target Q-value
target = reward
if not done:
target = reward + gamma * np.amax(target_model.predict(next_state, verbose=0)[0])
target_f = model.predict(state, verbose=0)
target_f[0][action] = target
# Update main DQN
model.fit(state, target_f, epochs=1, verbose=0)
Step 5: Epsilon-Greedy Policy
Implement exploration vs. exploitation:
epsilon = 1.0 # Initial exploration rate
epsilon_min = 0.01
epsilon_decay = 0.995
def choose_action(state):
"""Choose action using epsilon-greedy policy"""
if np.random.rand() <= epsilon:
return random.randrange(action_size)
q_values = model.predict(state, verbose=0)
return np.argmax(q_values[0])
Step 6: Training Loop
Train the agent for 1000 episodes:
episodes = 1000
target_update_freq = 10 # Update target network every 10 episodes
for e in range(episodes):
state = env.reset()
state = np.reshape(state, [1, state_size])
for time in range(500): # Max steps per episode
# Choose and execute action
action = choose_action(state)
next_state, reward, done, _ = env.step(action)
next_state = np.reshape(next_state, [1, state_size])
# Store experience
remember(state, action, reward, next_state, done)
state = next_state
# Train DQN
replay()
if done:
print(f"Episode: {e+1}/{episodes}, Score: {time}, Epsilon: {epsilon:.2f}")
break
# Update epsilon and target network
if epsilon > epsilon_min:
epsilon *= epsilon_decay
if e % target_update_freq == 0:
target_model.set_weights(model.get_weights())
Step 7: Test the Trained Agent
Set ( \epsilon = 0 ) to disable exploration and test:
epsilon = 0 # Disable exploration
state = env.reset()
state = np.reshape(state, [1, state_size])
for time in range(500):
action = choose_action(state)
next_state, _, done, _ = env.step(action)
next_state = np.reshape(next_state, [1, state_size])
state = next_state
if done:
print(f"Test Score: {time}")
break
env.close()
Tips for Success
Hyperparameters: Experiment with learning rate, ( \gamma ), ( \epsilon )-decay, or network architecture (e.g., more neurons).
Debugging: If the agent doesn’t learn (scores stay low), check the replay buffer size or increase training episodes.
Visualization: Use env.render() to watch the agent (requires a display or additional setup).
Conclusion
You’ve just completed a deep dive into Deep Q-Learning! We explored the foundations of RL, from the agent-environment loop to the MDP framework, and built on Q-Learning to understand Deep Q-Learning. By using a Deep Q-Network, Target Network, and Experience Replay, we addressed the challenges of combining neural networks with RL. The Python implementation showed how to apply Deep Q-Learning to solve CartPole, a classic RL problem.
This tutorial equips you to experiment further with Deep Q-Learning. Try tweaking the code—adjust the network size, test different ( \epsilon )-decay rates, or explore other Gym environments like LunarLander. Deep Q-Learning is a gateway to advanced RL applications, from robotics to game AI. Keep exploring, and enjoy the thrill of teaching machines to learn!
Frequently Asked Questions
Q1: What makes Deep Q-Learning different from Q-Learning?
A: Deep Q-Learning uses a neural network (DQN) to approximate Q-values, while Q-Learning uses a table. This makes Deep Q-Learning suitable for large or continuous state spaces like CartPole.
Q2: Why is the Target Network important in Deep Q-Learning?
A: The Target Network stabilizes training by providing consistent Q-value targets, preventing the main DQN from chasing its own predictions.
Q3: How does Experience Replay help in Deep Q-Learning?
A: Experience Replay breaks correlation in sequential data, improves sample efficiency, and stabilizes training by reusing past experiences.
Q4: How can I tell if my Deep Q-Learning agent is improving?
A: Monitor the episode scores. In CartPole-v1, scores approaching 500 indicate the agent is learning to balance the pole effectively.
Q5: Can I use Deep Q-Learning for other environments?
A: Yes! Adjust the state and action sizes, and Deep Q-Learning can be applied to other Gym environments or custom RL problems.
