Reinforcement learning (RL) is a tremendous field of artificial intelligence where agents learn optimal behaviors by trial-and-error with their environment. The CartPole environment, a strong pillar of RL research, is a platform that is both accessible and challenging. In this guide, we will explore CartPole in detail—covering its setup, code examples, and tips for effectively applying RL techniques.
This post is for beginners as well as experienced practitioners. Whether you’re new to RL or want to sharpen your skills, this comprehensive resource will help you master CartPole.

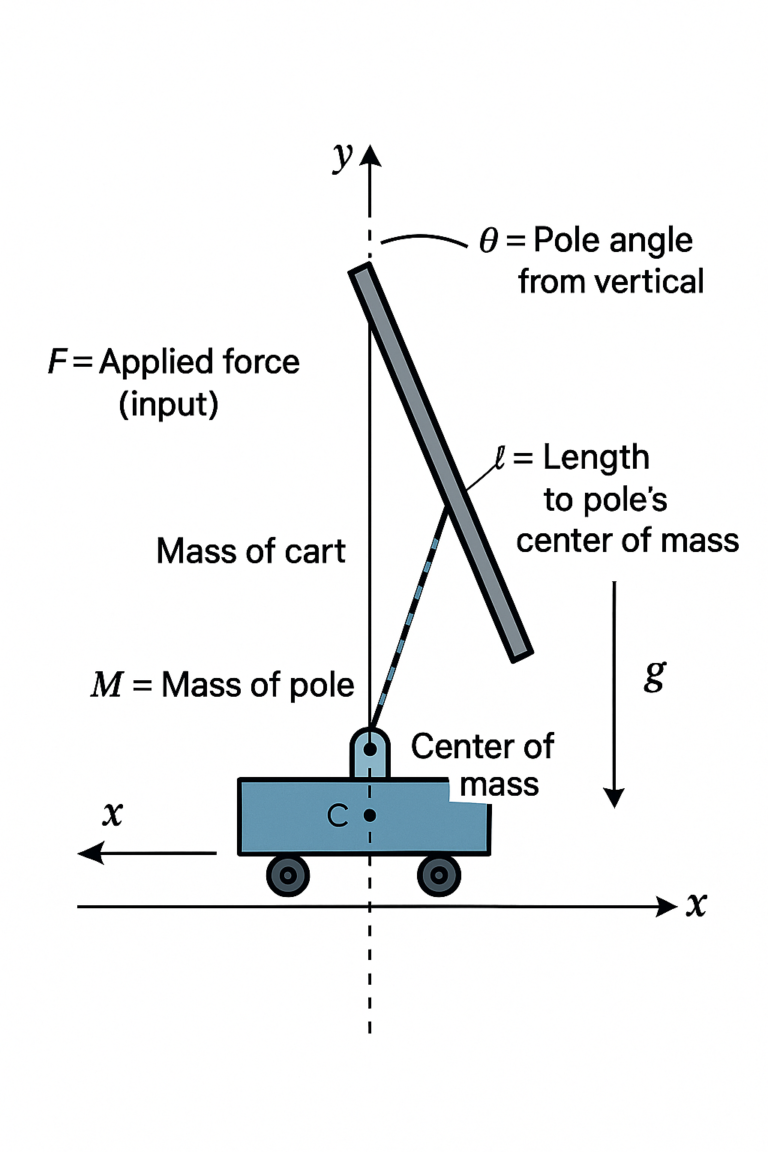

The CartPole problem, also known as the inverted pendulum, is a classic control task adapted for RL. It consists of a cart moving on a frictionless track with a pole hanging from it. The pole has a tendency to fall due to gravity unless the cart balances it.
Objective
The agent’s job is to keep the pole balanced by moving the cart left or right. The episode ends when the pole tilts too much, the cart goes out of the track, or the maximum number of steps are completed.
Why CartPole Matters
Why is CartPole important? Because it:
- Tests basic concepts of RL such as state-action mapping and reward optimization.
- Provides continuous state space and discrete actions that reflect real-world problems.
- Simple to experiment with, but has enough depth to gain insights.
Setting Up the CartPole Environment
To run the CartPole environment, we will be using Gymnasium (formerly Gym), which is a popular library for Rails.
Installation
To install Gymnasium, use the pip package manager:
pip install gymnasium
For visualization, dependencies such as Piglet may also need to be installed. If required:
pip install gymnasium[box2d]
Initializing the Environment
Here’s how to start the CartPole environment in Python:
import gymnasium as gym
env = gym.make('CartPole-v1', render_mode='human') # Visualization
state, _ = env.reset() # Initial state
- Version: KartPole-v1 has episodes that go 500 steps (200 in v0).
- Reset: env.reset() resets the environment and returns the 4th state vector.
State and Action Spaces
Understanding the inputs and outputs of the environment is important to create an effective RL agent.
State Space
The state is a continuous 4D vector:
- Cart Position: horizontal position on the track (-4.8 to 4.8).
- Cart Velocity: speed of the cart (slightly bounded).
- Pole Angle: angle from vertical in radians (-0.418 to 0.418, ~±24°).
- Pole Angular Velocity: rate of angle change.
Action Space
Actions are discrete:
- 0: move the cart left.
- 1: move the cart right.
These spaces define the agent’s observations and control options.
Rewards and Termination
Reward Structure
- For every step that the pole is balanced, the agent receives a +1 reward.
- The goal is to maximize the total reward by making the episode longer.
Termination Conditions
The episode ends when:
- The pole angle exceeds ±12° (~±0.209 radians).
- The cart position moves out by ±2.4 units.
- 500 steps are completed (in CartPole-v1).
This structure pushes the agent to develop a balancing strategy.
Environment Dynamics
CartPole simulates a physical system in which states are updated using numerical integration (Euler method) based on actions. The main forces are:
- Gravity: pulls the pole down.
- Applied Force: ±1 unit force moves the cart left or right.
Each time step is 0.02 seconds and the simulation performs calculations according to Newtonian mechanics.
Interacting with the Environment
To understand environmental behavior, let’s try creating a random agent.
import gymnasium as gym
env = gym.make('CartPole-v1', render_mode='human')
state, _ = env.reset()
done = False
total_reward = 0
while not done:
action = env.action_space.sample() # Random action (0 ya 1)
next_state, reward, done, truncated, info = env.step(action) # Action execute karo
total_reward += reward
env.render() # Simulation dikhao
state = next_state
print(f"Total Reward: {total_reward}")
env.close()
Key Methods
- env.reset(): Resets the environment, returns the initial state.
- env.step(action): applies the action, returns next_state, reward, done, truncated, info.
- env.render(): visually displays the environment (optional).
- env.close(): releases resources.
This random agent generally gives low rewards (20–50 steps) because it cannot learn.
Challenges in Solving CartPole
CartPole has the following challenges:
- Continuous State Space: Generalization to infinite states is required.
- Delayed Feedback: Previous actions affect subsequent states.
- Exloration vs. Exploitation: Balance between trying new actions and using learned strategies.
- Sensitivity: A small mistake can cause the pole to fall.
These challenges make CartPole a perfect RL testbed.
Solving CartPole with Reinforcement Learning
Q-learning is a good algorithm to solve Cartpole. For a continuous state space, we will discretize the states into bins.
Q-Learning Implementation
Here is a complete Q-learning example:
import numpy as np
import gymnasium as gym
# State discretize function
def discretize_state(state, bins, low, high):
ratios = [(state[i] - low[i]) / (high[i] - low[i]) for i in range(len(state))]
discrete = [int(round((bins[i] - 1) * ratios[i])) for i in range(len(state))]
return tuple(min(bins[i] - 1, max(0, d)) for d in discrete)
# Environment setup
env = gym.make('CartPole-v1')
state_low = [-4.8, -1.0, -0.418, -1.0] # Adjusted bounds
state_high = [4.8, 1.0, 0.418, 1.0]
bins = (10, 10, 10, 10) # Bins per dimension
q_table = np.zeros(bins + (env.action_space.n,))
# Hyperparameters
alpha = 0.1 # Learning rate
gamma = 0.99 # Discount factor
epsilon = 1.0 # Exploration rate
epsilon_decay = 0.995
min_epsilon = 0.01
# Training loop
for episode in range(1000):
state, _ = env.reset()
discrete_state = discretize_state(state, bins, state_low, state_high)
done = False
total_reward = 0
while not done:
# Epsilon-greedy action selection
if np.random.random() < epsilon:
action = env.action_space.sample() # Explore
else:
action = np.argmax(q_table[discrete_state]) # Exploit
# Step environment
next_state, reward, done, truncated, info = env.step(action)
next_discrete = discretize_state(next_state, bins, state_low, state_high)
# Q-value update
q_value = q_table[discrete_state][action]
max_next_q = np.max(q_table[next_discrete])
q_table[discrete_state][action] += alpha * (reward + gamma * max_next_q - q_value)
discrete_state = next_discrete
total_reward += reward
epsilon = max(min_epsilon, epsilon * epsilon_decay)
if episode % 100 == 0:
print(f"Episode {episode}, Reward: {total_reward}")
env.close()
How It Works
- Discretization: Converts continuous states into discrete bins for Q-table.
- Q-Table: Stores expected rewards of state-action pairs.
- Epsilon-Greedy: Balances exploration and exploitation.
- Q-Update: Updates Q-values based on rewards and future estimates.
This implementation often goes up to 500-step episodes after training. For advanced solutions, you can try Deep Q-Networks (DQN) or Policy Gradient Methods like PPO.
Visualizing and Debugging
Visualization
Plot rewards to track training progress:
import matplotlib.pyplot as plt
rewards = []
for episode in range(1000):
# (Training code as above)
rewards.append(total_reward)
plt.plot(rewards)
plt.xlabel('Episode')
plt.ylabel('Reward')
plt.title('Training Progress')
plt.show()
To see the behavior of the agent, turn on render_mode=’human’ during training.
Debugging Tips
Low Rewards: Adjust alpha, gamma, or bin sizes.
Rendering Issues: Check pyglet or dependencies.
Training Failures: Verify state discretization and epsilon decay rates.
Adding Colored Text and Block Styles to Your Blog
To add colored text and block styles (like next_state, reward, etc.) to the pasted content, do the following:
- Paste Content: Copy the text and paste it into the blog editor, which will appear as plain text.
- Add HTML/CSS:
- In HTML mode (like WordPress’s “Custom HTML” block or Blogger’s HTML view), wrap it with <span> tags:
<p>The <code>env.step(action)</code> method returns a tuple:
<span style="color: blue; background-color: #E6F3FF; padding: 2px 5px;">next_state</span>,
<span style="color: green; background-color: #E6FFE6; padding: 2px 5px;">reward</span>,
<span style="color: red; background-color: #FFE6E6; padding: 2px 5px;">done</span>,
<span style="color: purple; background-color: #F5E6FF; padding: 2px 5px;">truncated</span>,
<span style="color: orange; background-color: #FFF5E6; padding: 2px 5px;">info</span>.
</p>
3. Blog Editor: If the platform has a visual editor (like WordPress), then select each word and apply text/background color.
4. CSS Classes: Define classes in the blog’s CSS file for reusable styles:
.highlight-blue { color: blue; background-color: #E6F3FF; padding: 2px 5px; }
.highlight-green { color: green; background-color: #E6FFE6; padding: 2px 5px; }
Then apply:
<span class="highlight-blue">next_state</span>
5. Preview and Test: Check the post on desktop and mobile to make sure the colors and blocks look correct.
This approach gives a professional and visually appealing presentation.
Advanced Topics
- Customizing CartPole: Modify parameters like pole length or gravity in the Gymnasium source code.
- Benchmarking: Test new RL algorithms on CartPole.
- Real-World Applications: Applying CartPole principles to robotics or stabilization systems.
Conclusion
The CartPole environment is a perfect starting point for mastering RL. Its simple and complex mix makes it a fun playground for experimenting with RL algorithms. By following this guide you’ve learned the setup, interaction, and Q-learning solution. Now take the next step—play with code, try advanced algorithms, and go deeper into RL!
